01 / DRAW
Build the piping run.
Route measured pipe, place fittings and build from connections on an isometric workspace. Add equipment, notes and supports as the drawing takes shape.
Now live · Desktop web
Navigate every run
Piping intelligence built for the field.
Draw piping isometrics, work with fitting dimensions and pipe data, and prepare fabrication documents—all from your desktop browser.
Free account · 3 save slots · No installation needed
For drawing, open Pipe Pilot on a laptop or desktop.
Inside Pipe PilotDrawing workspace
Isometric drawing
Fitting & pipe dimensions
Pipe calculations
Cut lists & PDF export
Tools for the trade
From the first run to the final drawing.
Keep the route, the measurements and the fabrication details together.
02 / REFERENCE
Find the dimensions.
Work with pipe sizes, schedules and fitting dimensions. Keep the specification and reference information close to the drawing.
03 / CALCULATE
Work through the numbers.
Keep pipe calculations, lengths and fractional measurements in the same toolkit as your drawing and reference data.
04 / DOCUMENT
Put the details on paper.
Bring dimensions, pipe lengths and fitting takeouts into view. Review the cut list and export a PDF for the next stage of the job.
Fitting Dimensions

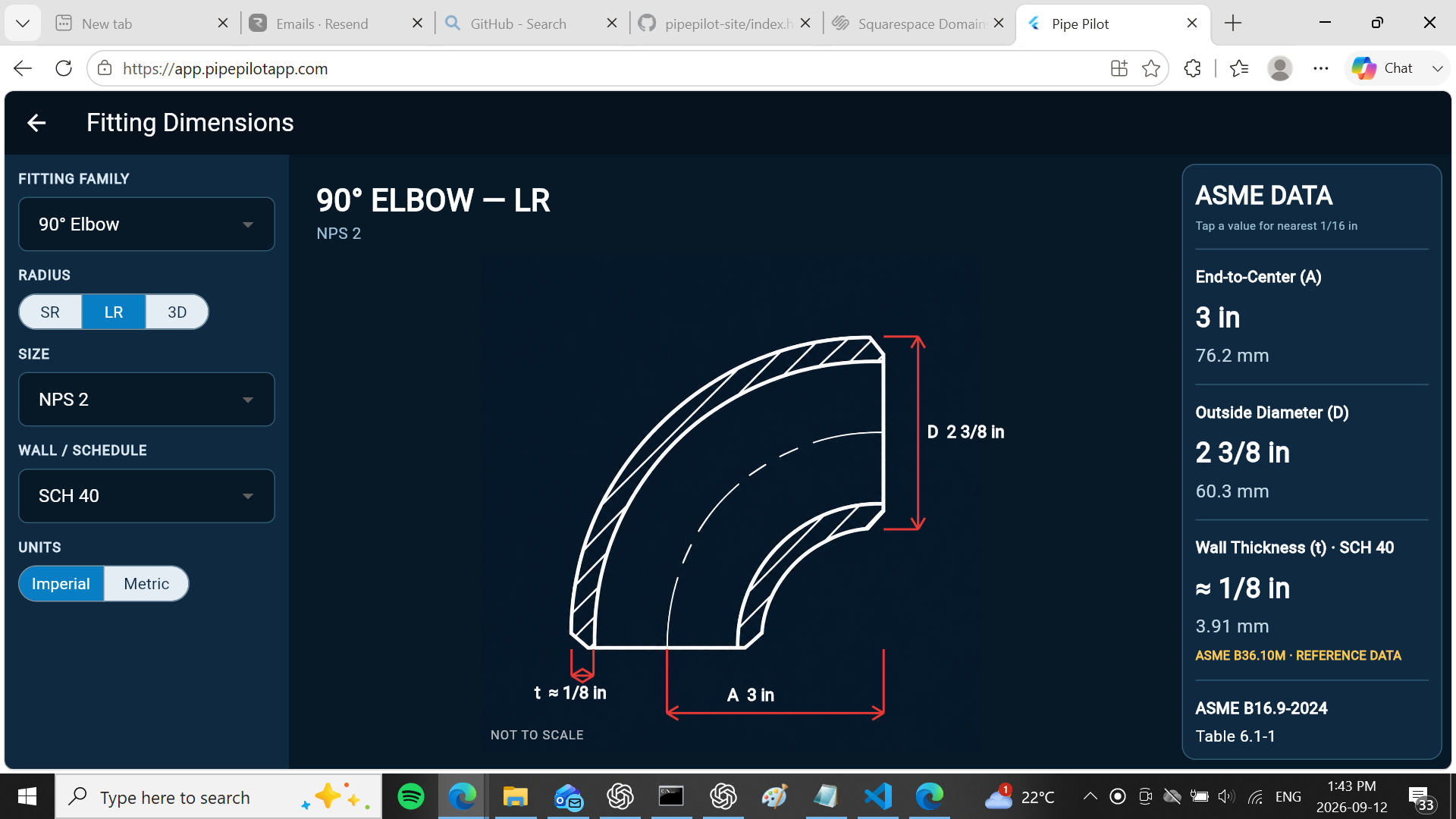

Choose a fitting, radius and size. See the dimensions on the fitting itself, with imperial and metric options.
Live app capture · Click to enlargePipe Data

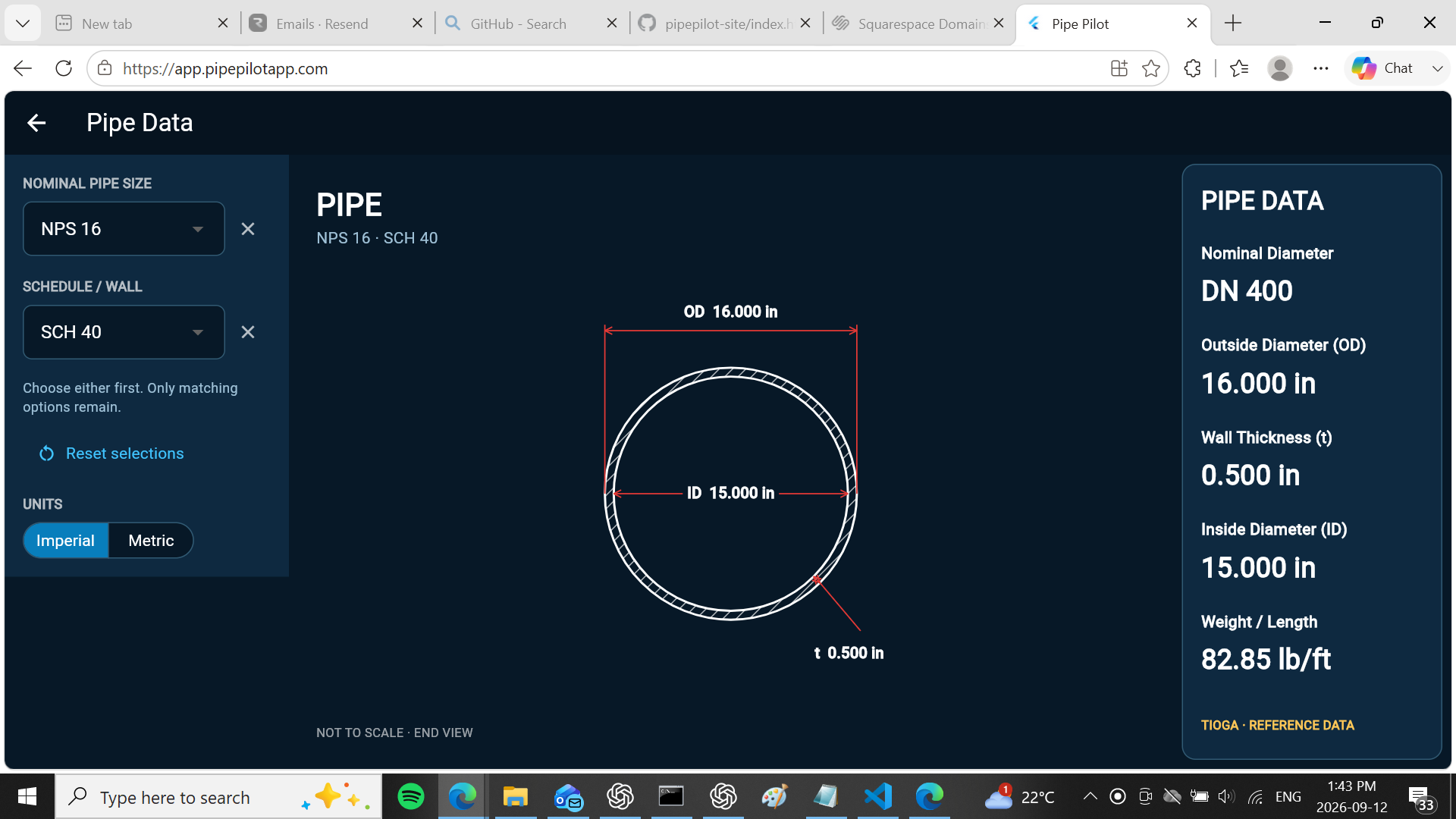

Look up outside diameter, inside diameter, wall thickness and weight per length for the selected pipe.
Live app capture · Click to enlargeFeet. Inches. Fractions.

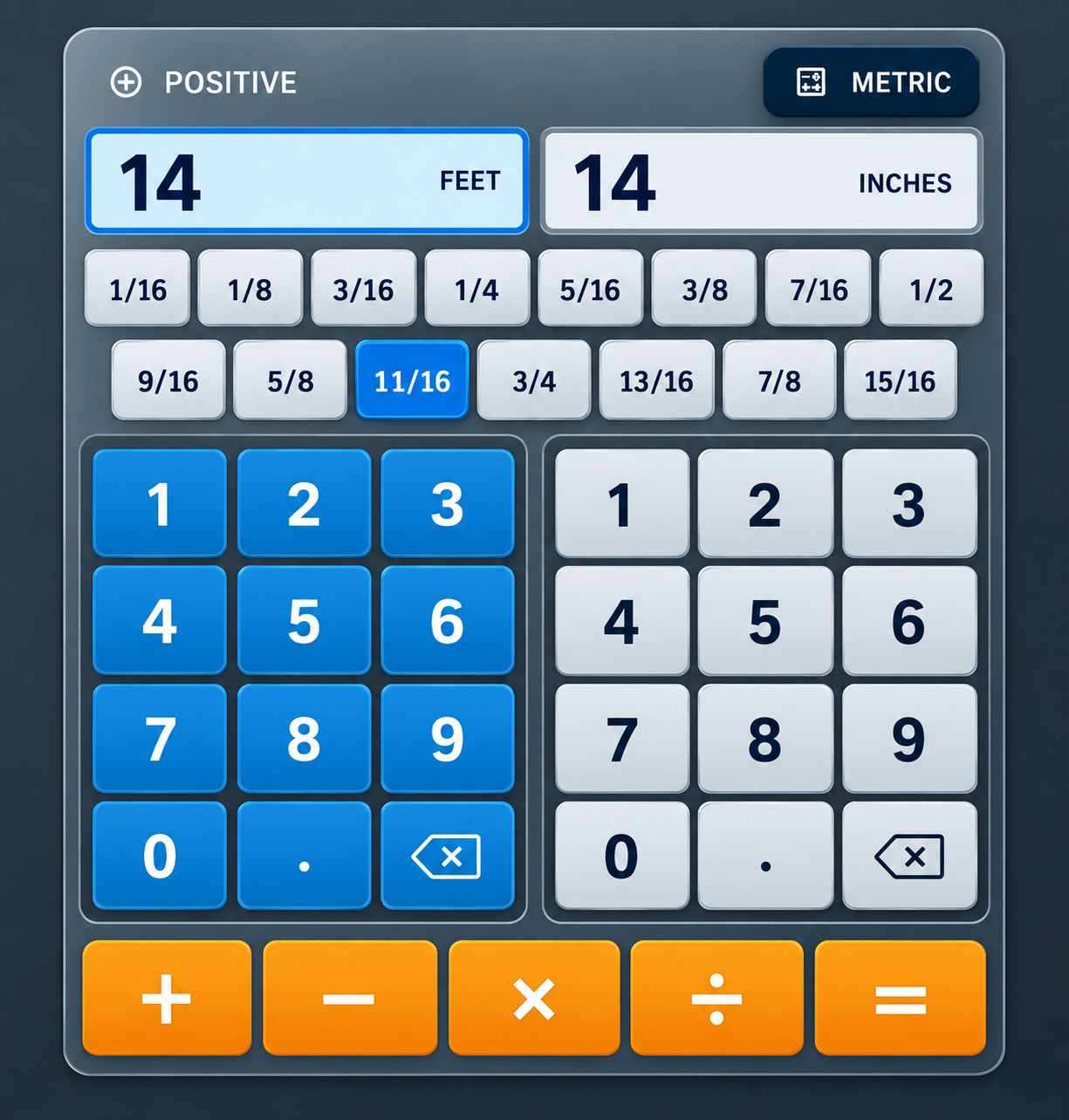

A look at the calculator design: separate feet and inches controls with fractions close at hand.
Design preview · Click to enlargeYour first run
Open it. Set your spec.
Start drawing.
Open Pipe Pilot
Use your desktop browser and sign in or create a free account.
Choose your pipe
Set the size and schedule, then choose your starting direction.
Build and save
Add lengths and fittings, review dimensions, and save your drawing.
Built with field feedback
Your next job can shape the next update.
Tell us what works, what slows you down and what would make Pipe Pilot more useful in the field or shop.
Share feedbackBeyond the drawing
Put Pipe Pilot on your toolbox.
Browse the sticker collection and the latest merch drops.
Shop Pipe PilotMobile is next
Desktop now. More to come.
Native iPhone and Android apps are in development. Follow Updates for progress.
Read the updatesGet in touch
Questions from the field?
Product questions, practical feedback, training and partnership inquiries.
